Reverse Engineering

Check out our engineering services to get your equipment back up and running while cutting costs, reducing downtime, and increasing efficiency, so you and your crew can get back to what matters.

Engineering Excellence

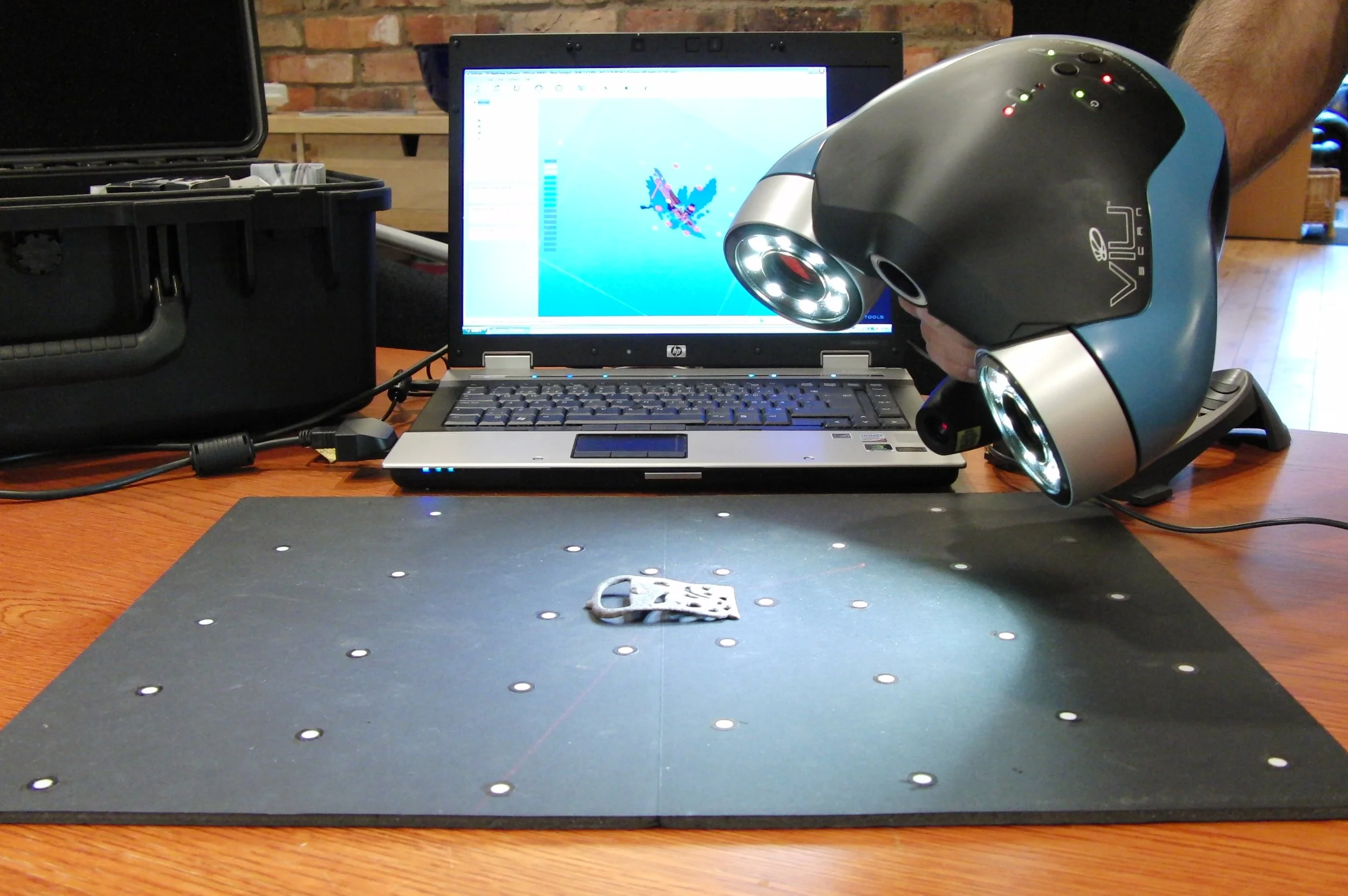

A laptop displaying a colorful 3D digital model on its screen, with a black case partly open nearby, a modern helmet with LED lights and a logo resting on the laptop, and a small object on a black padded work surface on a wooden table, with a brick wall in the background.

3D Scanning

Breakthrough uses advanced 3D scanning technology to accurately capture the dimensions of hard-to-find replacement parts, allowing for precise replication or redesign. This technology streamlines the search process, significantly reducing downtime by enabling faster procurement of replacement components while keeping costs low. Furthermore, a detailed 3D model helps identify compatibility with existing machinery, ensuring a better fit and optimal performance.

A robotic welding process with sparks flying as a robotic arm welds a metallic component with a helical pattern.

3D Printing

3D printing hard-to-find machine parts offers a significant advantage, allowing Breakthrough to quickly produce components that might otherwise be unavailable and minimizing downtime. This technology also reduces costs associated with traditional manufacturing methods, such as tooling and inventory expenses, enabling our clients to allocate their resources more efficiently.

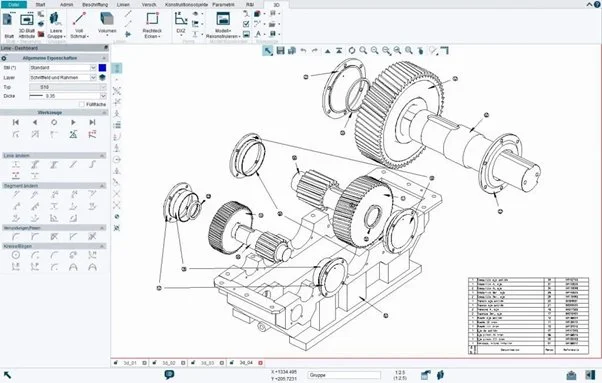

Technical drawing of a mechanical assembly featuring gears, shafts, and a base, with labeled parts and a parts list in the bottom right corner.

CAD Modelling

CAD modelling provides precise digital representations of components, enabling easy design modifications and adjustments for replacement parts. This technology enables efficient reverse engineering of machine components by accurately capturing their dimensions and functionality, making it easier to create high-quality replicas. By streamlining the design process, CAD modelling significantly reduces development time and improves replacement-part accuracy, getting your crews back to work quickly.

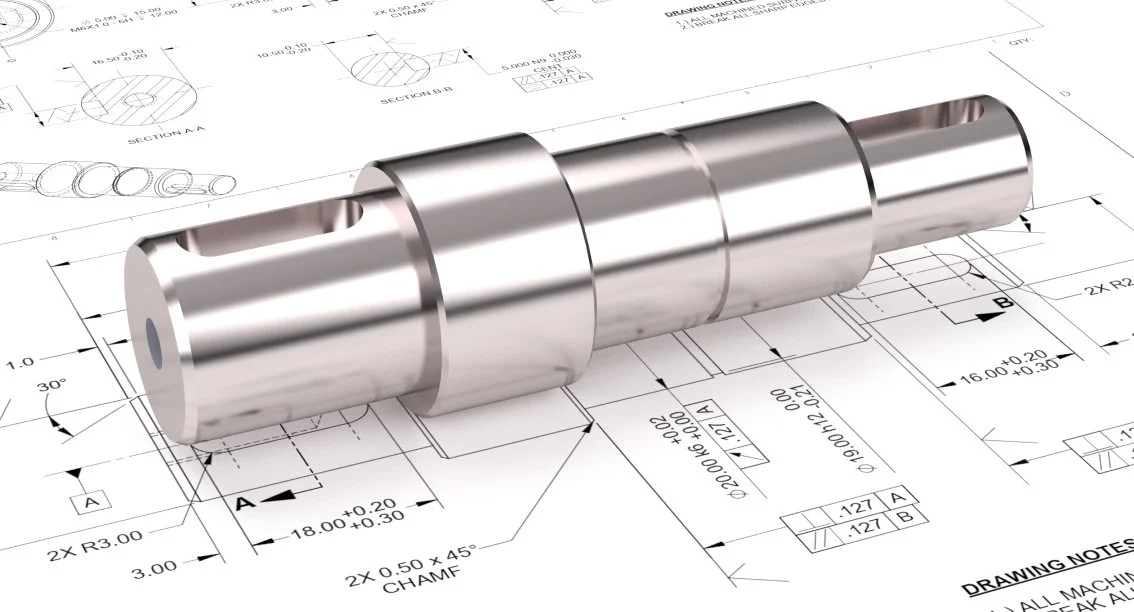

A 3D rendered metallic shaft placed on detailed engineering blueprints with measurements and annotations.

Fabrication

Fabricating hard-to-find replacement machine parts can significantly reduce costs by eliminating expensive sourcing and long supplier lead times. Producing these parts in-house also saves valuable time, gets machines back up and running quickly, and minimizes operational disruptions. This proactive approach not only boosts overall efficiency but also enhances reliability in meeting clients' needs, ultimately strengthening business relationships.

Breakthrough Industrial Services

A yellow excavator digging into the earth during sunset with a partly cloudy sky.

Equipment Design

We count on this visionary to define strategic priorities, allocate resources responsibly, and ensure every decision reinforces long-term value creation.

Find out more
A worker using an angle grinder to cut through metal, creating sparks. The person is wearing protective gloves and an orange work jacket, with another person nearby.

Equipment Repair

We can service any issue that troubles you or your team and get your equipment back to tip-top shape fast.

Find out more
Two workers in blue uniforms and white safety helmets working on a machine in an industrial workshop.

Preventative Maintenance

Breakthrough can even help you develop a personalized preventive maintenance program that automates service intervals, so your equipment never misses a beat.

Find out More >
A worker wearing protective gear welding metal, with bright sparks flying around in an industrial workshop.

Welding & Fabrication

We offer a variety of welding options to keep our customers running. No matter the welding issue, Breakthrough has the answer.


Find Out More >

Close Partnerships

Breakthrough Industrial Designs has built up strong partnerships over the years with machinists, hydraulic parts suppliers, Automation Programming and Troubleshooting Specialists, and Industrial Parts Suppliers.

We are happy to extend those bridges to our clients and customers. Please reach out with any questions.

Close-up of a large construction or hydraulic machine extending upward with a view of the sky in the background.

Hydraulic Parts

Metal workpiece on a CNC lathe machine with sparks flying as the tool cuts into the metal.

Machining

Close-up of metallic gears and mechanical components in a machine.

Industrial Parts

Automation Programming is an excellent service offered by Breakthrough Industrial Solutions that can significantly improve your productivity.

Automation Programming

Find Out More!

Contact Us

If you're interested in working with us, complete the form with a few details about your project. We'll review your message and get back to you as soon as we can.
